towel dispenser

1、About towel dispenser

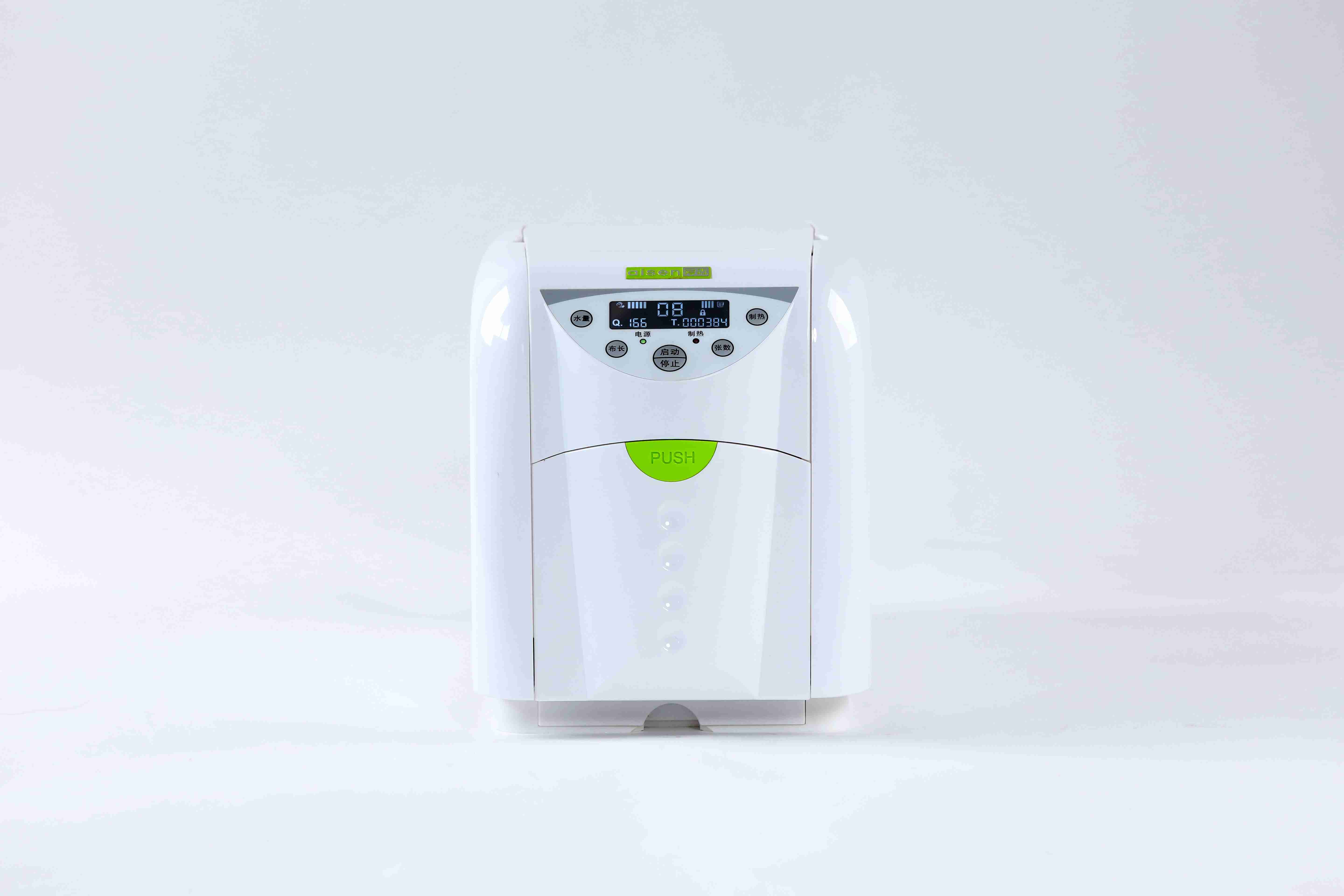

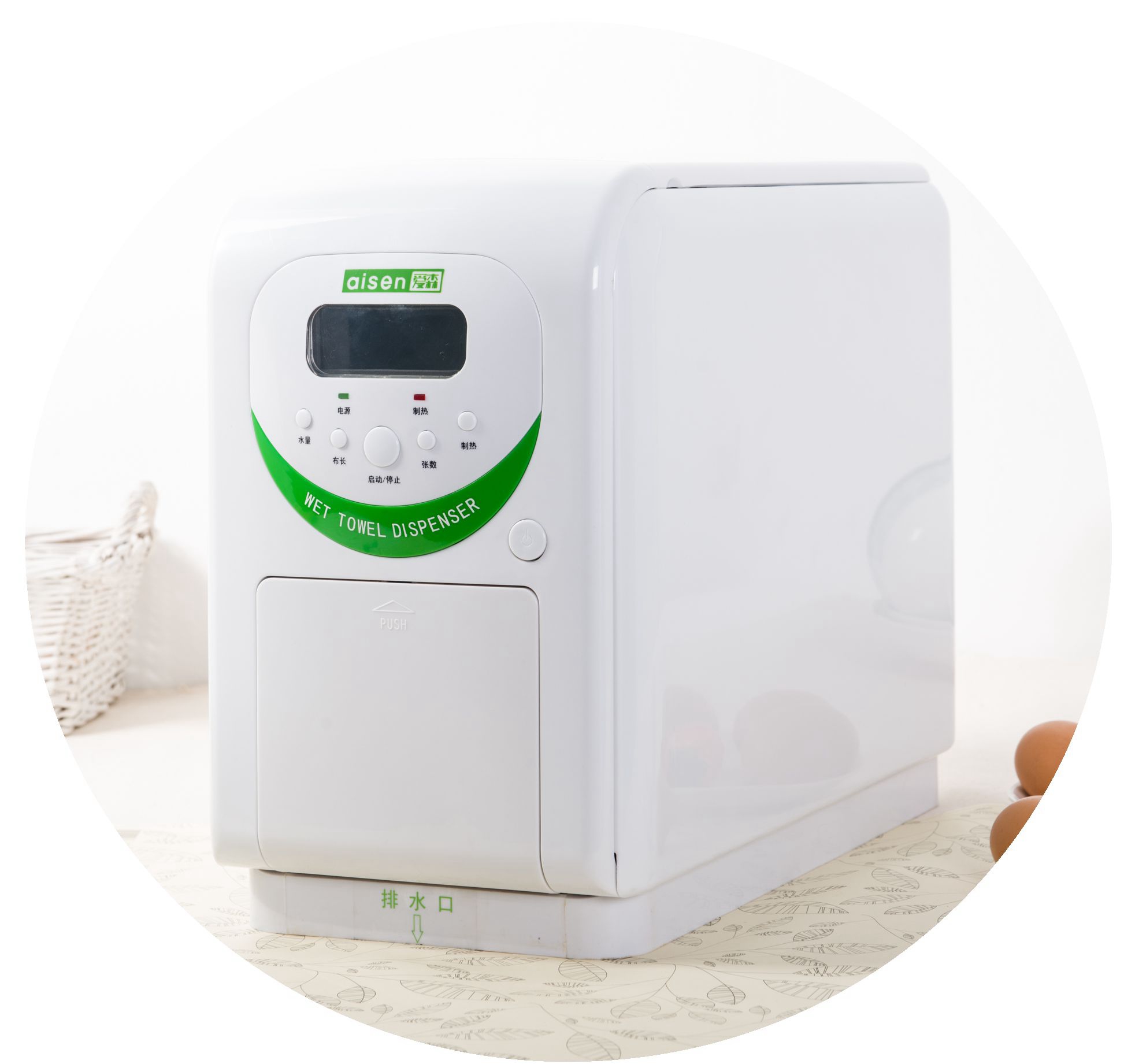

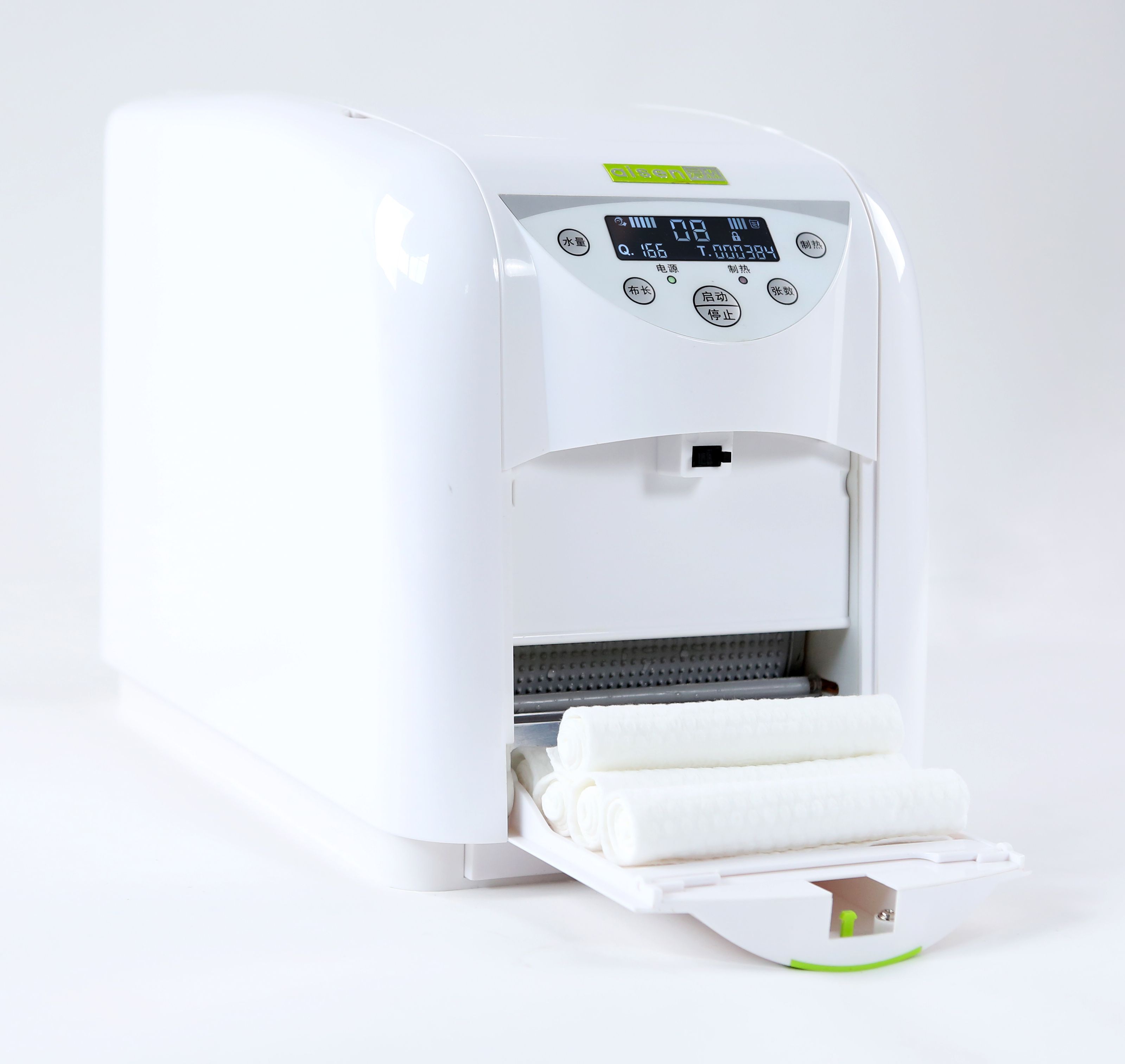

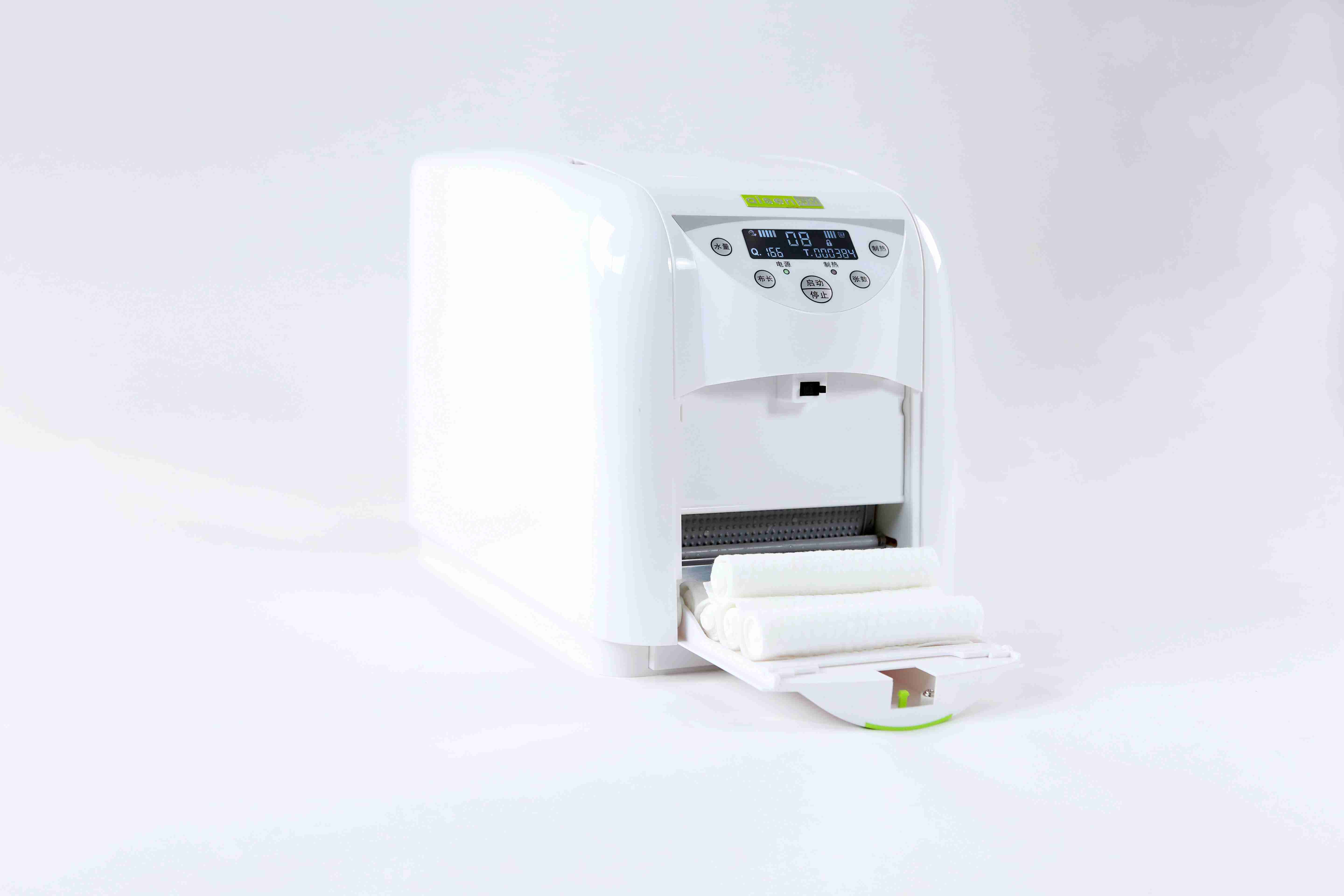

Wet towel dispenser is to create a one-time cold, heat, dry and wet towels intelligent household appliances, its fashionable appearance, clean environment, to facilitate cost-effective, it completely resolved the traditional towels, wipes, sponges and paper face serious excessive bacteria social problems, from the nature of life in line with modern comfort, health, and environmental protection, and noble nature of demand, is a product of human nature, has become a fashionable and healthy consumer products, will bring small appliances a new revolution in the industry.

With the rapid economic development, people's consumer attitudes began to change in new, green environmental protection has become the pursuit of fashion, food and clothing for the people of the past from the development to a higher level to meet the demand, the emergence of towel dispenser is required for people seeking current injected fresh blood. Can assert that in the near future, it will replace the traditional wet towel, paper napkin to become hotels, guesthouses, restaurants, beauty salon, gym, entertainment venues, airports, schools, and other household appliances fashion ideal.

2、About towel

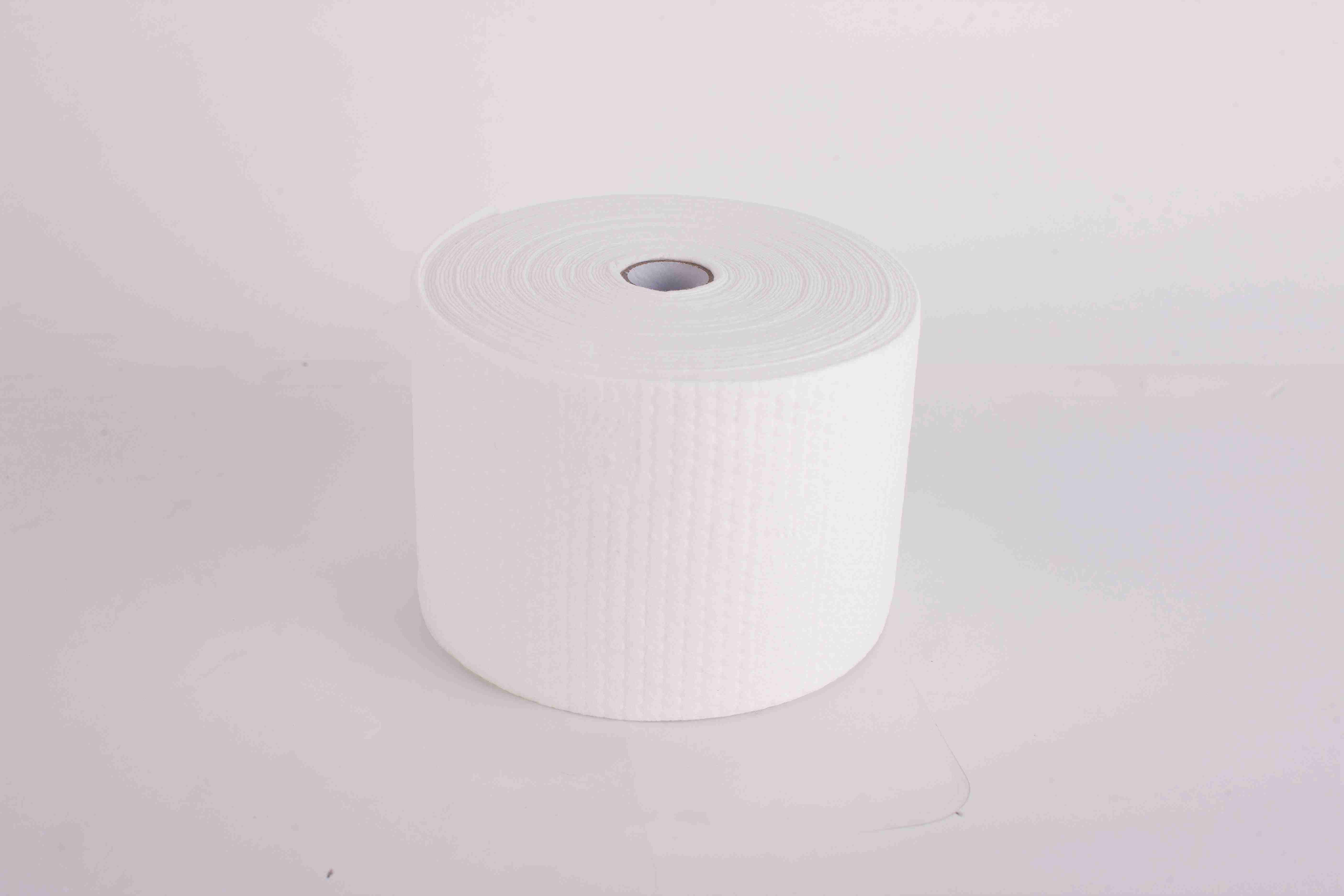

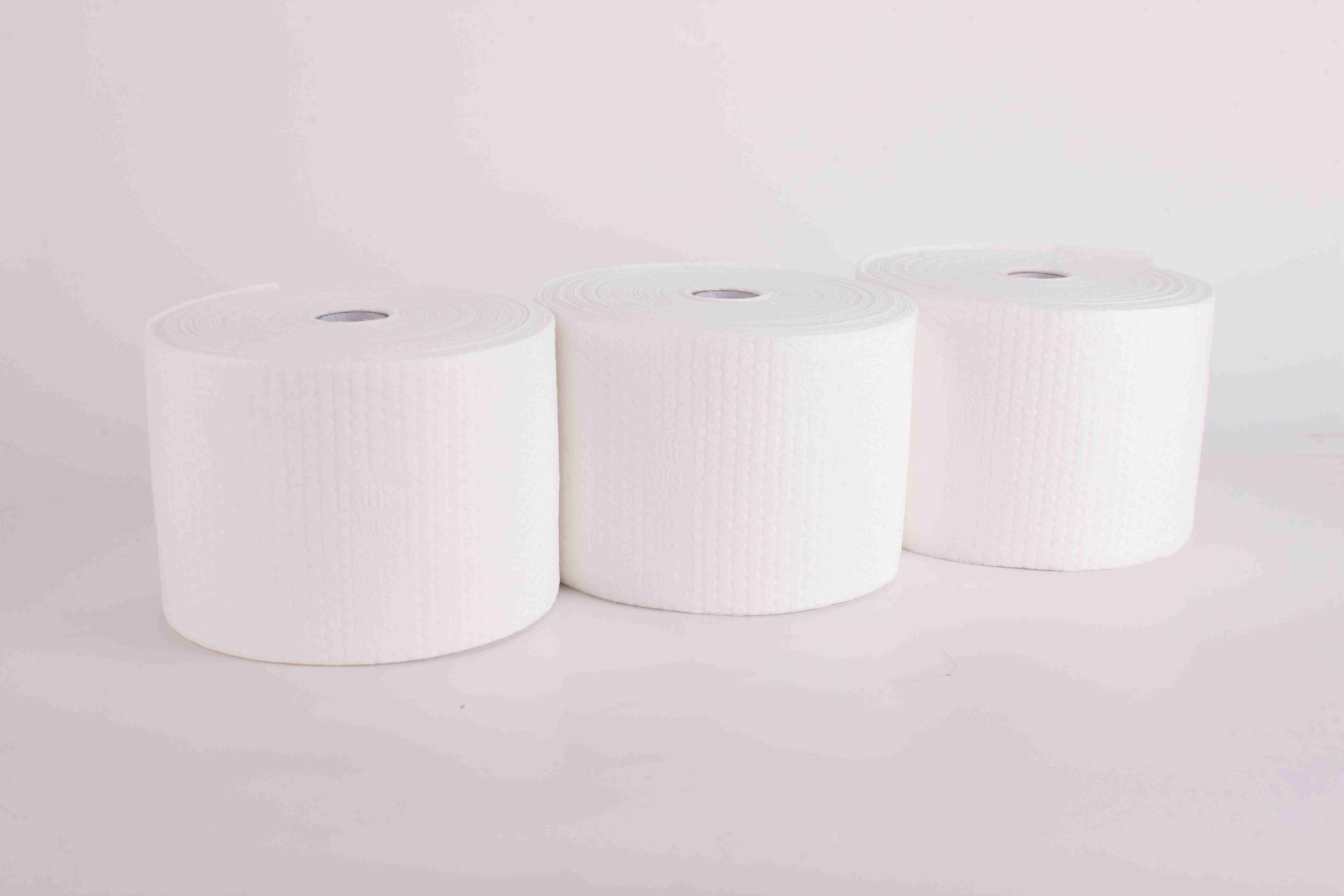

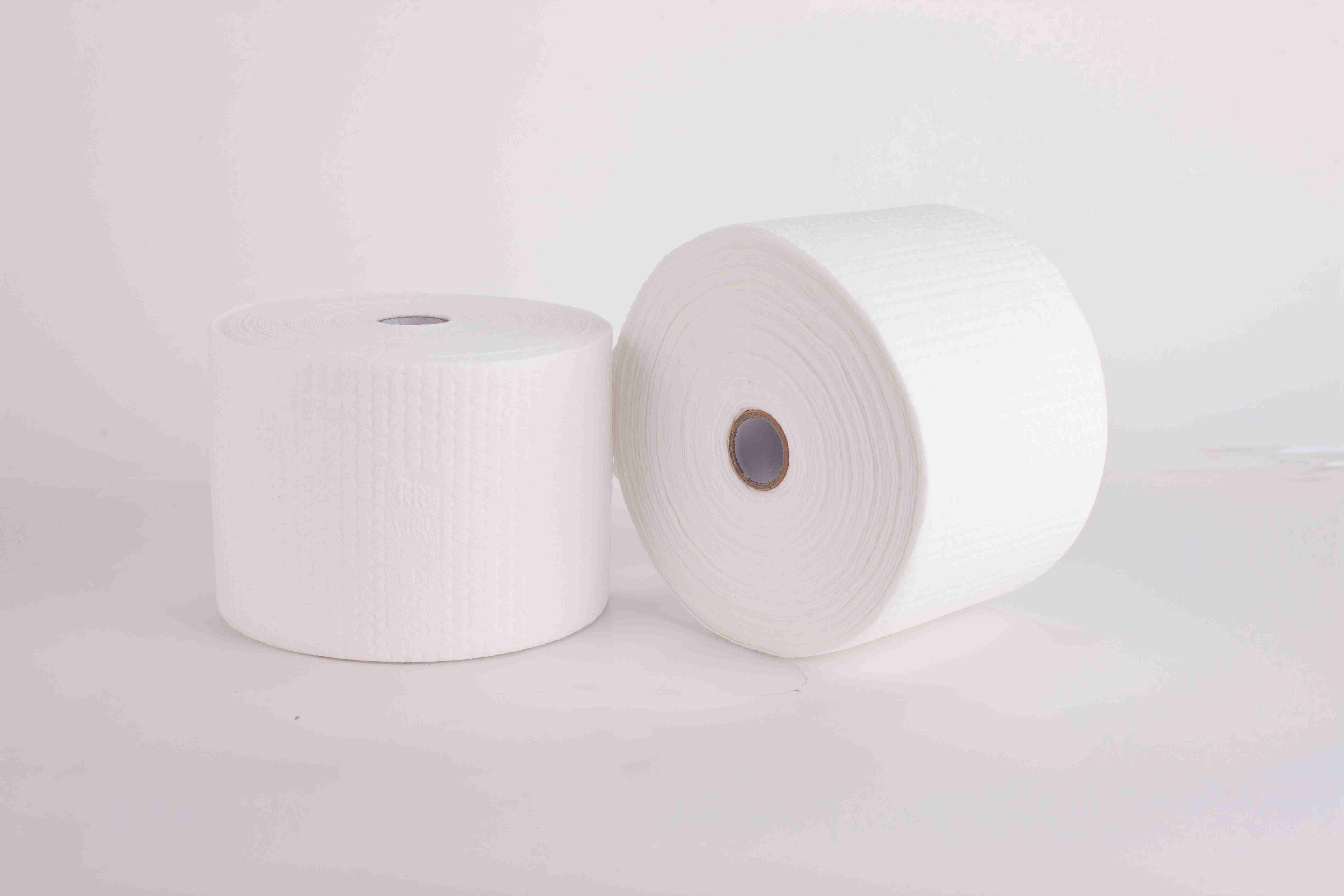

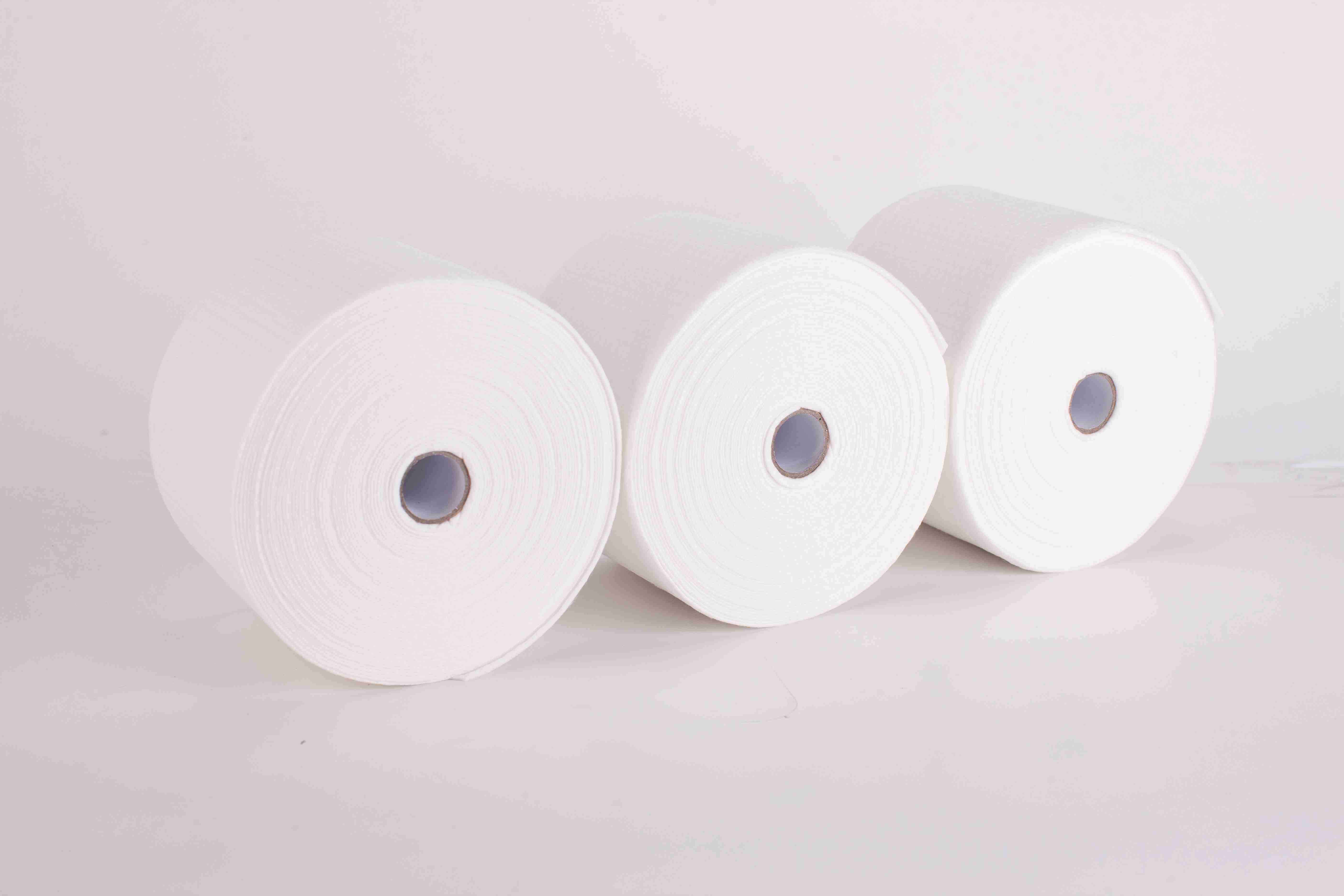

Towel roll for a new type of environmentally friendly spunlace non-woven. It’s pure natural vegetable fiber, formed by high-pressure water treatment; a one-time after use can be natural degradation, all return to nature, will not cause any pollution to the environment.

Natural plant fiber, in line with environmental protection requirements: Currently on the market use wet towels to clean when a large number of harmful emissions from sewage, but tissue is not easy because of the chemical decomposition of material, the serious pollution caused by waste. This product is used in cotton towel is made from natural plant, easy to degradation and pollution-free, is the most environmentally-friendly green products.

The most clean and sanitary fresh wet towel:

Traditional wet towels to use by repeated washing, dirty and easy to breed bacteria, are gradually being that consumers refuse to use. The products are based on customer needs, the provision of health at any time to create a clean wet towel, no fear of bacterial contamination, the most peace of mind to consumers, close protection.

A variety of re-use:

Although the product positioning for a one-time towel, but still use a towel after a number of uses, such as machinery maintenance, cleaning, cleaning and so on.

Not long-term preservation of metamorphic

Unused towel roll prior to drying, and not even worry about long-term preservation of metamorphism, can rest assured that use.

3、The structure and application

The use of microcomputer automatic (CNC) control; there is water shortage, lack of towels, automatic alarm function; out any regulation of the number of towels;

All contact with the water and the plastic pieces of paper and rubber parts, chassis body antibacterial materials are used;

Cutting devices: the use of the unique design of the scissors, currently only a thorough solution to jam towel.

The use of pump motor pump water directly sprayed.

Panel designed by the digital button, indicator light, LED /LCD display of the intuitive, eye-catching, easy to use;

Dual-motor systems: an independent cutting and sprinklers can be cut 140g towel roll.

Lines using a unique device designed to make machine more stable performance.

Wet Machine composition:

Wet machine of science and technology, mainly by the micro-computer intelligent control system, heating system, Volume cutting system, spray system composed of four systems.

4、Technical parameter

Heating cudgel direct heating of water; heating temperature of 80 degrees.

Longer scissor life, cutting more than 500,000 times

Electrical life expectancy of 8000 hours;

Towel dispenser speed for 14pcs per minute;

Set up 18pcs for one time

Size:43*21*33.5cm;N.W:about 7.6kg(SJJ-120A)

Size:40*21.5*27.5cm;N.W:about 6.7kg(SJJ-120B)

The application of environmental temperature:1-42 ℃

Adopt switching power supply, free from the impact of the global voltage used all over the globe.

5、Characteristic

Clean and sanitation: the use of disposable non-woven fabric. Machine through water tank disinfection sterilization, disposable wipes, a towel several times to avoid the traditional use of cross-infection arising.

Environmental protection: towel roll is 100% made from plant fiber and can be biodegradable, all return to nature, the effective protection of the environment.

Attractive appearance: small size, light weight, elegant design

Easy to use: LED/LCD widescreen display, simple to understand, just touch button, you can choose the number of wet towel

Shortcut and timesaving: from press the button to use just three seconds,

Economical and practical: low-cost, low energy consumption could be 24 hours of continuous use.

New ideas: Cold, heat, dry, wet, long, short, arbitrary adjusted, different times to meet the different needs.

7、Ideal use for

Wet towel dispenser can be widely used in various types of modern high-level sites, including the catering industry (restaurants, hotels), entertainment (coffee shops, nightclubs, karaoke, bars), social services institutions (nurseries, kindergartens, offices, schools, medical establishments ) and tourism, resorts, in addition to the station, aviation, shipping and family and so on. Not only to tie in with the pursuit of fashion, providing an elegant and warm environment for services, but also for the sake of the health of consumers in order to win the favor of consumers and favored a one-time cold and wet tissue wet tissue machine will be able to achieve this results.

8、Certification

1) 4 national patents:

Utility model patents - towel roll-in assembly: ZL 01233943.1

Design Patent – Wet towel dispenser: ZL03310475.1

Scissors-type cutter patent: ZL01233649.1

Wet towel dispenser components: ZL200420082503.X

2)CB/CE/GS/RoHS/PSE
